Options

An Options Page can be created to give immediate access to Custom parameters when a user open the Properties of a job. The Options page can be customized to create a job that performs a specific function. Additionally, the user can customize the following aspects of the Job Property dialog:

1.The tabs that are accessible on the Property page

2.A maximum of 10 custom fields in the newly created Options tab

3.Custom text for each of these fields

4.The icon and title text of the dialog

5.The descriptive text at the lower part of the page

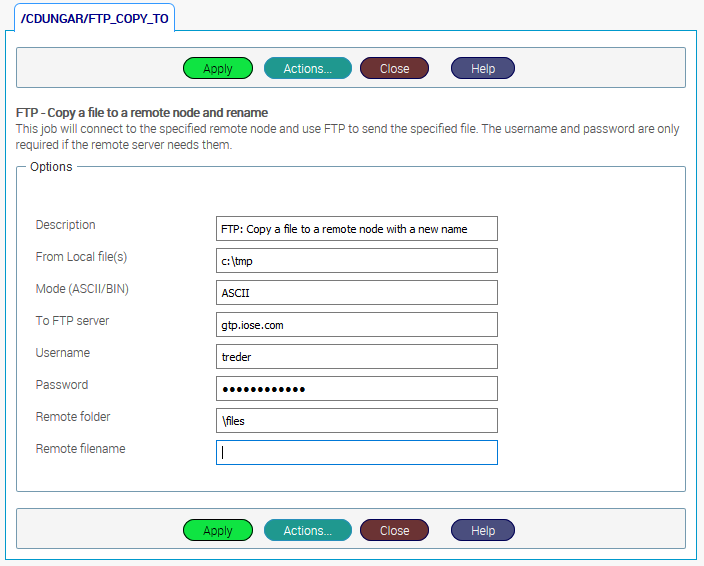

An example of an Options tab is shown below. The items in this tab were created by editing a list of options in the Auxiliary section of the job. Also notice that there are only two other tabs in the dialog as opposed to the normally available 12. This was also determined by the Options section. The following sections describe how to create make each of these changes.

Note: For more on the Options page see the EnterpriseSCHEDULE User's Guide

! put any notes here

begin_options !---------------------------------- options controls

! WinGui: define what icon to use with this job

options_icon=22

! WinGui: define the options form layout

 options_title = "FTP - Retrieve a file from a remote node"
 options_description = "This job will connect to the specified remote node and use FTP "
 options_description1 = "to retrieve the specified file. The username and password are "
 options_description2 = "only required if the remote server needs them."
 options_question1 = "Description", sc_comment
 options_question2 = "From FTP server", sc_parameter_3
 options_question3 = " Username", sc_parameter_4
 options_question4 = " Password", sc_parameter_5
 options_question5 = " Remote file name", sc_parameter_6
 options_question6 = " Mode (ASCII/BIN)",sc_parameter_2
 options_question7 = "To Local file name", sc_parameter_1

! WinGui: turn on/off certain of the property pages

 general_page_enabled = 1
 access_page_enabled = 0
 settings_page_enabled = 0
 stats_page_enabled = 0
 notify_page_enabled = 1
 rescheduling_page_enabled = 0
 submit_page_enabled = 0
 parameters_page_enabled = 0
 connections_page_enabled = 0
 resources_page_enabled = 0
 commands_page_enabled = 0
 notes_page_enabled = 0
 options_page_enabled = 1

! WinGui: turn on/off sections of the "start now" dialog

 submit_header1 = ""
 submit_set_controls_enabled = 0
 submit_job_controls_enabled = 0
 submit_start_controls_enabled = 0
 submit_use_last_enabled = 0
 submit_reset_enabled = 0
 submit_identity_enabled = 0
 submit_tagdata_text = ""
 submit_tagdata_enabled = 0
 submit_parameter_text = ""
 submit_parameter_enabled = 0

! WinGui: turn on/off sections of the "complete now" dialog

 complete_header1 = ""
  complete_set_controls_enabled = 1
  complete_job_controls_enabled = 0
  complete_use_last_enabled = 0
  complete_reset_enabled = 0
  complete_identity_enabled = 0
  complete_tagdata_text = ""
  complete_tagdata_enabled = 0
  complete_parameter_text = ""
  complete_parameter_enabled = 0

! Cli: define what questions to ask during job creation

 create_prompt_width = 22
 create_description = "This job retrieves a file from a remote FTP node"
 create_question1 = "From Ftp server", sc_parameter_3
 create_question2 = " Username", sc_parameter_4
 create_question3 = " Password", sc_parameter_5
 create_question4 = " Remote file name", sc_parameter_6
 create_question5 = " Mode (ASCII/BIN)", sc_parameter_2, BINARY
 create_question6 = "To Local file name", sc_parameter_1

end_options
